Intelligent operation display device for GTS-960A switch cabinet

 GTS-960A开关柜智能操显装置,功能强大,用于0.4KV-35KV户内开关柜,取代现有的一次回路模拟图,温湿度控制器,高压带电闭锁装置。适用于中置柜,手车柜,固定柜,环网柜等多种开关柜。同时本装置外观精致,美观,简化,美化了开关柜面板,有效地提升开关柜品质。

 GTS-960A switch cabinet intelligent display device, powerful, used for 0.4KV-35KV indoor switch cabinet, replace the existing primary circuit analog diagram, temperature and humidity controller, high voltage live locking device. The utility model is suitable for various switch cabinets, such as central cabinet, handcart cabinet, stationary cabinet, ring net cabinet, etc.. At the same time, the device has exquisite appearance and beautiful appearance, simplifies and beautifies the panel of the switch cabinet, and effectively improves the quality of the switch cabinet.

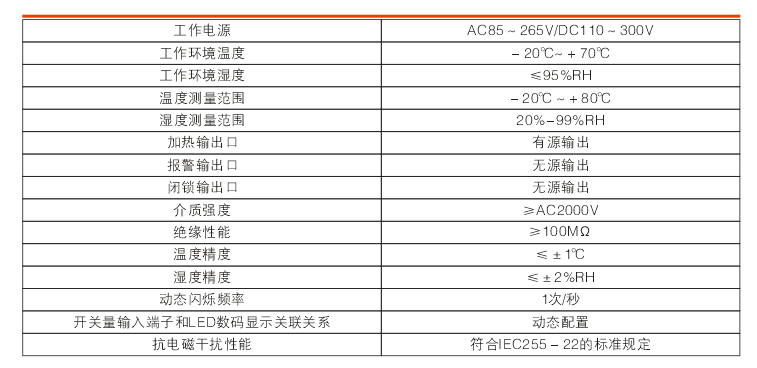

 技术参数:

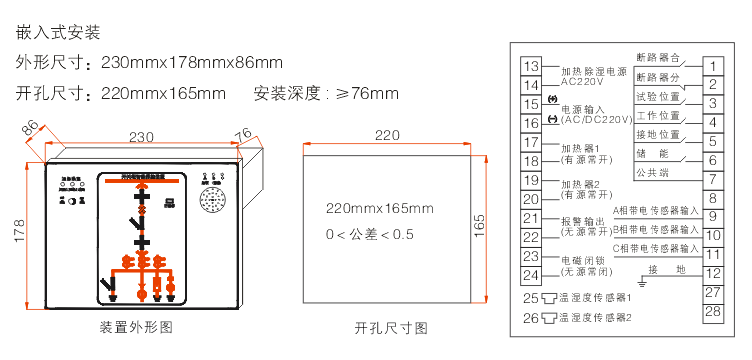

安装方式及端子接线图:
