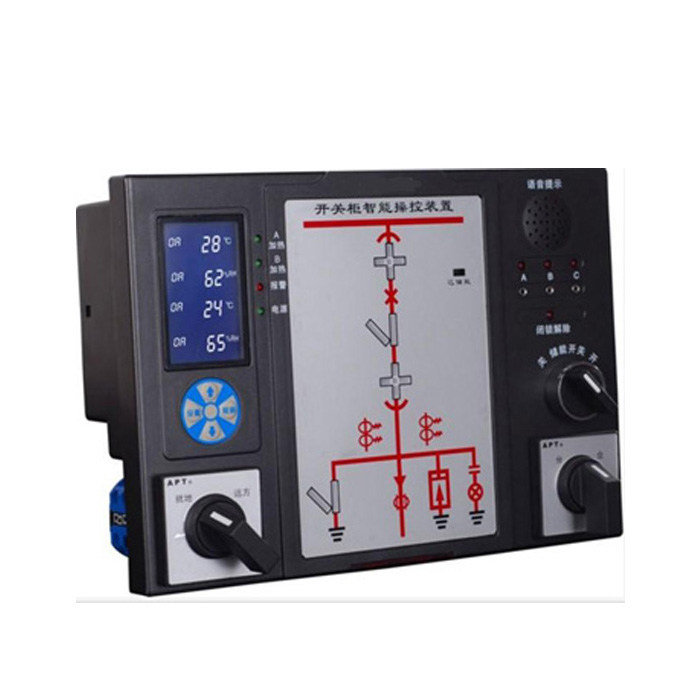

GTS-960E开关柜智能操控装置，产品功能强大，用于3KV-35KV户内开关柜，中置柜，手车柜，固定柜，环网柜等多种开关柜。具有动态一次模拟图，高压带电显示，自动加热除湿数据显示及控制，断路器分合状态指
示，储能指示，接地开关状态指示，小车位置指示，分合闸回路完好指示，人体感应及柜内照明，语音防误提示等功能。可取代现有的一次回路模拟图，带电显示器，自动加热除湿控制器，断路器分合按钮等高亮度大屏幕LCD显示器，RS485通讯接口，MODBUS通讯协议。使开关柜进一步智能化，网络化，数字化，方便广大用户使用与操作。

GTS-960E switch cabinet intelligent control device, the product is powerful, used for 3KV-35KV indoor switchgear, central cabinets, hand car cabinets, fixed cabinets, ring nets, cabinets and other switching cabinets. It has dynamic primary analog diagram, high voltage live display, automatic heating, dehumidification, data display and control

Indication, indication of storage energy, grounding switch status indication, indication of car position, complete indication of switching circuit, induction of human body and illumination inside the cabinet, voice anti misoperation, etc.. Can replace the existing primary circuit analog diagram, live display, automatic heating dehumidification controller, circuit breaker, split button, high brightness large screen LCD display, RS485 communication interface, MODBUS communication protocol. The switch cabinet is more intelligent, networked and digitalized, which is convenient for users to use and operate.
